B2B Sourcing Guide & Tool

12V DC Stepper Motor Supplier:
Dynamic Parameter Sizing & Supplier Audit

Off-the-shelf stepper motors are rarely optimized for tight 12V DC power budgets. Validate your winding parameters (resistance, inductance, current, and speed limits) below to generate a customized factory RFQ package.

Check 12V winding fitSend supplier RFQ

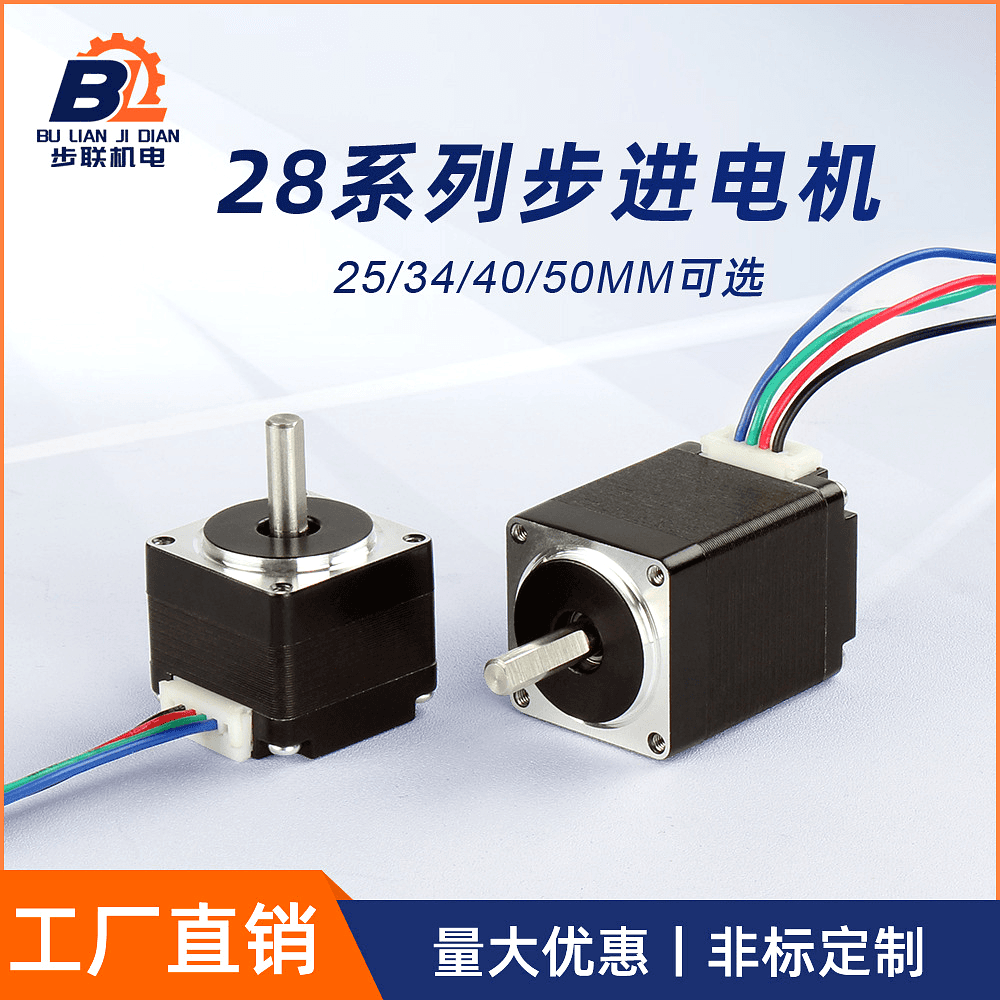

12V DC stepper motor supplier winding and driver selection for OEM automation
Interactive RFQ Validator

12V DC Stepper Motor Sizing & Supplier Screening Tool

Validate your electrical parameters (winding resistance, inductance, current, and speed limits) under 12V DC operating limits. The tool returns matching supplier profiles and RFQ-ready specifications.

Drive Electronics Class

Enter motor and driver parameters to screen the supplier path.

The first result will classify the RFQ as standard chopper supply, direct-drive high-resistance winding, OEM custom winding, or factory engineering review.

Executive Summary & Supplier Landscape

Procuring stepper motors for 12V DC applications involves balancing severe electrical constraints. Unlike 24V or 48V industrial setups, a 12V bus offers very little voltage headroom to overcome coil inductance and back-EMF at high step frequencies. Sourcing standard catalog motors without analyzing winding resistance and inductance often leads to stalled axes or thermal burnout in the field. This report provides B2B buyers, systems integrators, and OEM engineers with the mathematical formulas, decision trees, and quality gate standards necessary to establish a reliable factory sourcing channel.

9V - 16V transient band

12V is a voltage budget, not a motor speed limit

Battery, vehicle, and solar systems experience high voltage fluctuation. Suppliers must validate winding performance across this dynamic transient window.

Z = R + jwL constraint

Coil impedance determines torque decay rate

At 12V, high winding inductance restricts coil current rise. Sourcing low-inductance (< 2.5 mH) windings is critical for speed bands above 300 RPM.

R > 8 ohms safeguard

Direct H-bridge requires high winding resistance

Driving a low-resistance stepper directly with a constant 12V DC source will draw high current, causing immediate winding thermal burnout.

I_peak x V_bus x 0.7 + overhead

Power capacity must handle dynamic acceleration

Multi-axis machines draw peak currents during acceleration. Power supplies must be sized with 20% headroom to prevent transient voltage sags.

Custom prototyping in 2-3 wks

OEM value lies in winding customization

Standard catalog windings are built for higher voltages. High-performance 12V applications require customized low-resistance windings from the manufacturer.

Slew rate bottleneck

12V vs 24V limits usable high-speed range

While 12V offers similar holding torque to 24V, its lower voltage cannot force current into the windings fast enough at high RPMs, causing the dynamic torque curve to collapse significantly earlier.

2. Direct-Drive (12V Direct) vs. Chopper-Driven (12V Chopped) Architectures

The first step in supplier triage is identifying your drive electronics class. Low-cost consumer controllers apply 12V DC directly to the coils using standard H-bridges, which requires high-resistance windings to passively limit current. Industrial applications use constant-current chopper drivers to actively regulate coil current, allowing the use of low-resistance, low-inductance windings that provide higher dynamic speeds.

Drive ArchitectureTypical ResistanceTypical InductanceMax SpeedBurnout RiskBest For
Direct H-Bridge (Toy / Direct Drive)High (8.0 to 30.0 ohms)High (10.0 to 45.0 mH)Low (< 100 RPM)Low (limited by high winding resistance)Simple microcontroller toys, educational kits, low duty cycle
Constant-Current Chopper (Industrial B2B)Low (0.8 to 2.5 ohms)Low (1.5 to 4.0 mH)Medium to High (up to 1200 RPM)Critical (if current regulation fails)Automotive actuators, medical pumps, lab automation, off-grid CNCs
Figure 1: Drive Electronics SchematicsDirect Drive H-Bridge (Toy / Unregulated)12V DC SourceSwitch H-BridgeNo Current LimitStepper CoilConstant-Current Chopper (Regulated)12V DC SourceChopper Driver (DM542)High Freq ComparatorStepper Coil

3. Key Technical Trade-offs & Operating Boundaries at 12V

When sourcing a 12V stepper motor, the nominal "12V" label must be qualified based on the actual power source. Battery-powered setups fluctuate based on discharge cycles, while automotive systems encounter heavy electrical transients during engine cranking. Standard B2B quotes must specify motor thermal limits across the entire operating range.

Power Source ProfileNominal VoltageOperating RangeTransient LimitsSupplier Sourcing Caveat
12V Lead-Acid Battery (Portable / Solar)12.0 VDC10.5 VDC - 13.8 VDC9.0 VDC - 14.4 VDCVerify driver under-voltage lockout (UVLO) does not trip at 9V during heavy discharges.
12V Automotive / Vehicle System12.0 VDC11.0 VDC - 14.4 VDC6.0 VDC (cranking) - 16.0 VDCMust withstand heavy transients; alternator noise requires additional power filtration.
12V Industrial Regulated Supply12.0 VDC11.8 VDC - 12.2 VDC11.4 VDC - 12.6 VDCSimplest sourcing path; ensure power supply handles reverse back-EMF energy during deceleration.

The Inductance-Voltage Constraint: Gecko Drive Experience Formula

A critical design pitfall in 12V system integration is selecting motors based on catalog "rated voltage". In chopper-driven industrial systems, the motor's physical inductance restricts how fast current can build up in the winding. The industry-standard empirical formula developed by Gecko Drive estimates the optimum bus voltage required to maximize motor speed and dynamic torque without excessive coil heating:

V_max ≈ 32 × √L_mH

Applying this standard: a highly optimized, low-inductance B2B stepper motor with a winding inductance of 1.5 mH requires an ideal driver supply voltage of 39.2VDC to perform to its full torque potential. Running this motor on a rigid 12VDC bus represents a major performance trade-off, leading to a steep torque drop-off (decay) above 300 RPM. Sourcing motors with inductances higher than 2.5 mH for 12V applications will trigger severe torque starvation and high stall risks.

⚠️ Procurement Warning: Automotive AEC-Q100 vs. Motor Standards

Many B2B buyers sourcing 12V DC stepper motors for automotive sub-assemblies (e.g., active headlamp actuators, HVAC flap valves) mistakenly request AEC-Q100 certification for the motor itself.

AEC-Q100 is exclusively a stress-test qualification standard for semiconductor integrated circuits (ICs). As electromechanical components, raw stepper motors cannot be AEC-Q100 qualified. Instead:

  • Driver Electronics: Sourcing teams must ensure that the stepper motor control IC (e.g., MPS MPQ6609-AEC1 or Allegro A4992) carries automotive AEC-Q100 qualification.
  • Motor Assemblies: The physical stepper motor must be sourced from a manufacturer certified under IATF 16949 (Automotive Quality Management System) and must comply with environment testing standards like ISO 16750-2 (vibration, thermal shock, mechanical drop).

Table 9: B2B Winding Screening Examples (12V Bus Performance)

The following examples use representative datasheet resistance and inductance values to show how the 12V voltage budget changes sourcing risk. Treat them as screening examples and request the supplier's own speed-torque curves before approving a PO.

Supplier & ModelWinding InductancePhase ResistanceOptimal Voltage (Empirical)12V Performance EvaluationSourcing Recommendation
Low-inductance NEMA 17 datasheet example1.6 mH1.4 ohms40.5 VDCModerate risk: 12V is below the empirical optimum voltage, so high-speed torque must be bench-tested.Suitable for low-to-medium speed 12V medical/solar applications.
Low-inductance NEMA 23 datasheet example2.0 mH1.6 ohms45.3 VDCHigh risk: request speed-torque curves at 12V before using it above 300 RPM.Requires ultra-low inductance custom windings for high-speed AGVs.
Standard NEMA 23 catalog winding example3.6 mH1.8 ohms60.7 VDCSevere risk: treat as low-speed only unless the supplier provides a 12V torque curve.Avoid on 12V bus unless speed is limited to < 100 RPM.
High-resistance direct-drive 12V example32.0 mH30.0 ohms181.0 VDCNot a chopper-drive fit: resistance is intentionally high for simple voltage drive.Only for toy-grade direct H-bridge drive (passive current limiting).
Figure 2: Dynamic Torque Roll-off under 12V vs 24V vs 48V BusSpeed (RPM)Dynamic Torque (N.m)02004006008000.00.51.048V Bus24V Bus12V Bus (Severe Decay)

4. Winding Calculations & Impedance Limitations

To verify if a motor can deliver torque at speed on a 12V bus, you must calculate its equivalent coil impedance. The coil reactance ($X_L = 2\pi f_e L$) increases linearly with electrical frequency ($f_e$). As impedance ($Z = \sqrt{R^2 + X_L^2}$) rises, the available bus voltage can no longer force the rated current into the coils.

Key Impedance Formulas

  • Electrical Frequency ($f_e$):$$f_e = \frac{\text{RPM} \times \text{Full Steps per Rev}}{60 \times 4} \text{ Hz}$$For standard 1.8° motor at 300 RPM: $(300 \times 200) / 240 = 250 \text{ Hz}$.
  • Coil Reactance ($X_L$):$$X_L = 2\pi f_e L_{\text{Henry}}$$If inductance is 3.0 mH: $2 \times \pi \times 250 \times 0.003 \approx 4.71 \text{ ohms}$.
  • Total Impedance ($Z$):$$Z = \sqrt{R_{\text{coil}}^2 + X_L^2} \text{ ohms}$$If resistance is 2.0 ohms: \sqrt{2^2 + 4.71^2} \approx 5.11 \text{ ohms}.
  • Max Winding Current ($I_{\text{max}}$):$$I_{\text{max}} = \frac{V_{\text{bus}}}{Z} = \frac{12\text{V}}{5.11\text{ }\Omega} \approx 2.35 \text{ A}$$
Figure 3: Coil Impedance (Ohms) vs Winding Inductance (mH)Impedance (ohms) at 12V busCustom Winding (1.5 mH)3.2 Ω (at 300 RPM)Standard Catalog (3.0 mH)5.1 Ω (at 300 RPM)High Inductance (8.0 mH)11.4 Ω (Torque Starved)

5. Sourcing Decision Tree & Winding Specifications

Use the decision tree below to match your electrical drive style and application requirements to standard catalog windings or custom factory winding runs.

Frame SizeRated currentDC resistanceWinding inductanceHolding torqueRecommended Drive Type
NEMA 17 (42mm)1.2 A2.2 ohms2.8 mH0.42 N.mChopper (e.g. DRV8825)
NEMA 23 (57mm)2.8 A0.9 ohms2.2 mH1.2 N.mChopper (e.g. DM542)
NEMA 23 (Direct Drive)0.4 A30.0 ohms22.0 mH0.55 N.mDirect H-Bridge (e.g. L298N)
NEMA 34 (86mm - Custom)4.5 A0.4 ohms1.2 mH4.5 N.mLow-voltage Chopper
Figure 4: B2B Sourcing Decision TreeIs Drive StyleDirect or Chopper?Direct DriveHigh-ResistancePassively Limited WindingChopperCheck InductanceIs Speed > 300 RPM?YesCustom OEM WindingInductance < 2.2 mHNoCatalog Low-voltageStandard NEMA Windings

6. Custom Winding OEM Program: Prototyping & Lead Times

Standard catalog motors are wound with a higher number of turns of thin copper wire to achieve high torque at low currents, which results in high inductance. For large OEM projects, a factory direct winding program allows modifying the coil wire thickness and number of turns to optimize dynamic torque at 12V bus voltage.

Sourcing StageQuantity RangeLead TimeCost MetricFactory Deliverables
Factory Prototype1 - 5 pieces2 - 3 weeksSetup fee + unit premiumSample datasheet, performance test reports, mechanical drawing approval
Pilot Run / Validation50 - 200 pieces3 - 4 weeksStandard unit cost + tooling setupBatch testing reports, material certification declarations (RoHS/REACH)
OEM Mass Production1,000+ pieces4 - 6 weeksFactory direct OEM pricingTraceable incoming/outgoing QC reports, shipment packing checklists
Figure 5: OEM Custom Winding Production Pipeline1. Send Specs2. Winding Design3. Prototype sample4. Bench validation5. Mass PO

7. Sourcing Scenarios & Validation Targets

Use these procurement scenarios to define what must be tested before a supplier is approved. They are not claimed as public customer outcomes; each scenario states the validation target that should appear in the RFQ or pilot-run test plan.

Scenario 1: Solar panel tracking drive sourcing

Application Challenge: Off-grid 12V battery system operating outdoor actuators. High dynamic torque required to withstand wind loads.

Sourcing & Drive Resolution: Factory modified a NEMA 23 motor to a low-inductance (1.5 mH) custom winding and recommended an IP65 sealed housing. Driven by a constant-current chopper driver.

Validation Target: Bench validation target: confirm dynamic torque at 150 RPM under 11V battery voltage before mass-production PO release.

Scenario 2: Medical infusion pump direct-drive module

Application Challenge: Needs extremely silent, ultra-slow flow rate control driven by simple battery H-bridge circuits.

Sourcing & Drive Resolution: Sourced a high-resistance NEMA 17 winding (38.0 ohms, 1.2A rating) to run on unregulated 12V DC passively without high-frequency chopper switching noise.

Validation Target: Bench validation target: confirm acoustic noise and winding temperature during a 24-hour continuous-duty test.

Scenario 3: Warehouse autonomous guided vehicle (AGV)

Application Challenge: 4-axis heavy-load drive operating on 12V lithium-ion battery. Battery sags to 10V during dual-motor acceleration.

Sourcing & Drive Resolution: Sized 150W low-noise supply with bulk capacitor bank (4700uF) at drivers. Sourced customized NEMA 24 low-inductance windings.

Validation Target: Bench validation target: log bus voltage during dual-axis acceleration and verify current limiting at the configured driver phase-current setting.

Scenario 4: Automotive tailgate actuator OEM project

Application Challenge: High-volume production (50,000+ units/yr) requiring strict thermal tolerances (-40°C to +85°C) and custom wire connectors.

Sourcing & Drive Resolution: Developed custom NEMA 17 winding with Class F insulation system (155°C) and direct molded wire harness connector.

Validation Target: Bench validation target: run the OEM thermal-cycle profile and require lot-level connector pull-force and insulation reports.

Scenario 5: Off-grid CNC wood router running on 12V battery power

Application Challenge: High speed (up to 800 RPM) needed for rapid travel. Off-the-shelf catalog motors stalled repeatedly at 300 RPM.

Sourcing & Drive Resolution: Sourced 1.1 mH low-inductance NEMA 23 motors, driven at 12V by high-frequency chopping drivers.

Validation Target: Bench validation target: verify stall-free rapid travel across the discharged-battery voltage window, not only at a fully charged battery voltage.

Figure 6: Power Supply Wattage Requirement per Axis CountRequired Power Supply Capacity (Watts) at 12VDC1 Axis (Single drive)25 W2 Axes45 W4 Axes (with Diversity)80 W (Shared Supply)8 Axes (with Diversity)150 W

8. B2B Procurement Risks & Mitigation Strategy

Procuring custom windings introduces risks around lead times, unit costs, and quality control. Review our mitigation checklist before releasing a Purchase Order (PO).

Risk CategoryImpact DescriptionMitigation Strategy
High-speed Torque DropStepper stalls or skips steps under high operating load.Source winding with inductance under 2.5 mH and run chopper drives rather than direct H-bridges.
Winding Overheating / BurnoutMotor suffers coil isolation breakdown and shorts.Ensure constant-current regulation. Never use low-resistance motors with unregulated direct 12V supplies.
Battery Voltage Sag FaultsMicrocontroller resets or driver triggers low-voltage lockout during motor startup.Size the power supply with 20% current headroom and add large electrolytic capacitors near the driver terminals.
Battery Discharge Torque CollapseAs a 12V battery drains toward 10.5V, available headroom to overcome back-EMF drops, causing sudden mid-cycle stalls at high speeds.Design speed limits assuming the worst-case discharged voltage (e.g., 10.5V), not the fully charged 12.8V state.
Logistics and Transit DelaysMass production timeline delays assembly lines.Agree on safety stock arrangements and establish written replacement transit terms in the PO.
Figure 7: Stepper Motor Lead Wire Conventions4-Wire Bipolar (Standard)CoilsA+ (Red)A- (Blue)B+ (Green)B- (Black)6-Wire Unipolar (Center Tapped)CoilsA+ (Red)Center A (White)A- (Blue)Center B (Yellow)

9. RFQ Specification Checklist

When requesting quotes from a stepper motor manufacturer, ensure your RFQ packet includes the following technical items to avoid scoping errors.

Electrical Specification RFQ Checklist

  • Nominal DC Operating Voltage: State standard (e.g. 12VDC) and transient limits (e.g. 9V-16V).
  • Phase Current Limit: Clearly state maximum driver output current class (e.g. 2.0A RMS).
  • Maximum Winding Inductance: Specify maximum allowed inductance (e.g. < 2.5 mH) to maintain speed.
  • Required Holding Torque: Specify static torque target (e.g. 0.8 N.m minimum).
  • Target Speed Band: List operating RPM range (e.g. 100 to 400 RPM).
Figure 8: RFQ Engineering Document Standard Layout12V APPROVED

10. Enclosure & Power supply Sizing Guide

Since 12V DC power supplies are typically cheaper than high-voltage industrial mains supplies, B2B buyers often purchase commodity grid supplies. Use the sizing guide below to determine the minimum recommended power capacity.

Axis CountPhase Current TargetDC Bus VoltageMinimum Power SupplyRecommended Fuse Class
1 Axis1.5 A12.0 VDC25 W3 A Fast-acting
2 Axes1.5 A12.0 VDC45 W5 A Fast-acting
3 Axes1.5 A12.0 VDC65 W8 A Fast-acting
4 Axes (with Diversity)1.5 A12.0 VDC80 W10 A Slow-blow
8 Axes (with Diversity)1.5 A12.0 VDC150 W20 A Slow-blow
Figure 9: Control Cabinet Thermal FlowControl Enclosure (12V Supply + Driver)Cool Air In12V DC SupplyHeat rise: LowChopper DriverHigh Heat DissipationWarm Air Out

11. Environmental, Compliance & Thermal Limits

Verify compliance requirements early. Low-voltage DC systems still need basic insulation class approvals and environmental ingress protection certifications (IP ratings) when deployed outdoors.

Operational ParameterStandard SpecificationReference StandardsSourcing Significance
Winding Thermal Insulation ClassClass B (130°C max) or Class F (155°C max)UL 1446 Systems of Insulating MaterialsEnsures winding isolation does not degrade over years of continuous duty at hot cabinet ambient.
Ambient Temperature Range-20°C to +50°C operating ambientIEC 60068 Environmental TestingCritical for solar tracking or automotive actuators operating in outdoor enclosure cabinets.
Ingress Protection (IP Rating)IP40 (standard) to IP65 (washdown / dustproof)IEC 60529 Ingress Protection CodeOutdoor B2B projects (e.g. off-grid solar trackers) require IP65 housing seals and cable glands.

12. Quality Gate Criteria for Incoming Inspections

B2B contract agreements should define AQL (Acceptable Quality Limit) levels for critical parameters. The factory must test and confirm these specifications before shipment release.

Quality check areaIncoming AQL TargetFactory Test StandardRejection Threshold
Winding DC Resistance Matching1.0% AQLKelvin bridge resistance test at 20°CDeviation greater than +/- 10% of approved spec sheet
High-voltage Winding Insulation0.4% AQLHipot test at 500VAC for 60 secondsLeakage current exceeding 1 mA during test
Dynamic Back-EMF Balance1.5% AQLSpin motor at 1000 RPM, measure peak-to-peak phase voltagePhase amplitude imbalance greater than 5%
Output Shaft Radial Runout0.65% AQLDial indicator measurement at shaft midpointRadial runout exceeding 0.02mm
Figure 10: Global Sourcing and Logistics Flow1. Winding QC2. Hipot Verification3. Export Port4. Destination Customs5. OEM Assembly Line

13. Literature & Industry Standards Citations

Our 12V DC stepper motor supplier guide relies on established industry standards and standard engineering literature.

Topic AreaPrimary Source ReferenceKey Technical FindingSource Checked Date
DC bus voltage transient behavior in vehiclesISO 7637-2:2011 Road vehicles - Electrical disturbancesISO standards dictate voltage test pulses representing electrical transients on 12V vehicle supply lines, establishing the cranking and charging boundaries.2026-06-20
Low-voltage motor insulation rulesUL 1446 Standard for Systems of Insulating MaterialsUL defines thermal class limits and compatibility testing for insulating varnishes, tapes, and slot liners in low-voltage motors.2026-06-20
Ingress Protection testing proceduresIEC 60529 Ingress Protection CodeDefines the IP rating criteria (dust chamber testing, water jet exposure) used by suppliers to qualify sealed outdoor stepper motors.2026-06-20
Stepper motor dynamic characteristics and equationsNEMA ICS 16-2001 Motion/Position Control Motors and ControlsProvides standard definitions, performance criteria, and measurement techniques for stepper motors, including step angle tolerance and torque measuring.2026-06-20
Automotive semiconductor qualification standardsAEC-Q100 Qualification StandardEstablishes stress-test qualification for integrated circuits. Confirms that only driver ICs (not raw motors) can carry AEC-Q100 certification.2026-06-20
Step motor supply voltage rules of thumbGeckodrive Step Motor Basics GuideEstablishes the industry-standard formula (V_max = 32 * sqrt(L_mH)) to size power supply voltage based on motor coil inductance.2026-06-20
Environmental conditions for road vehicle electronicsISO 16750-2:2012 Road vehicles - Environmental conditionsDefines electrical loads, transients, and testing profiles for equipment operating on 12V battery and alternator networks.2026-06-20
Increasing High Speed Torque in Stepper MotorsTexas Instruments Application Note (AN-828)Explains how increasing the slew rate of winding currents with higher drive voltages (or optimized chopper topologies) extends the usable torque band at higher RPMs.2026-06-25
Stepper Motor Driver ConsiderationsSTMicroelectronics Application Note (AN460)Details how unipolar vs. bipolar topologies and constant-current drive architectures impact torque output under constrained low-voltage conditions.2026-06-25

Related 12V Stepper Motor Sourcing Pages

Use these adjacent engineering pages when your supplier decision depends on driver current, high-torque winding behavior, or alternate voltage classes rather than the exact 12V DC supplier path covered here.

12V DC high torque step motor sourcing limits12V 1A stepper motor driver supply checker12Nm high-torque stepper supplier fit checkerStepper motor control method selector120V stepper motor supplier RFQ checker1 degree stepper motor supplier screening
