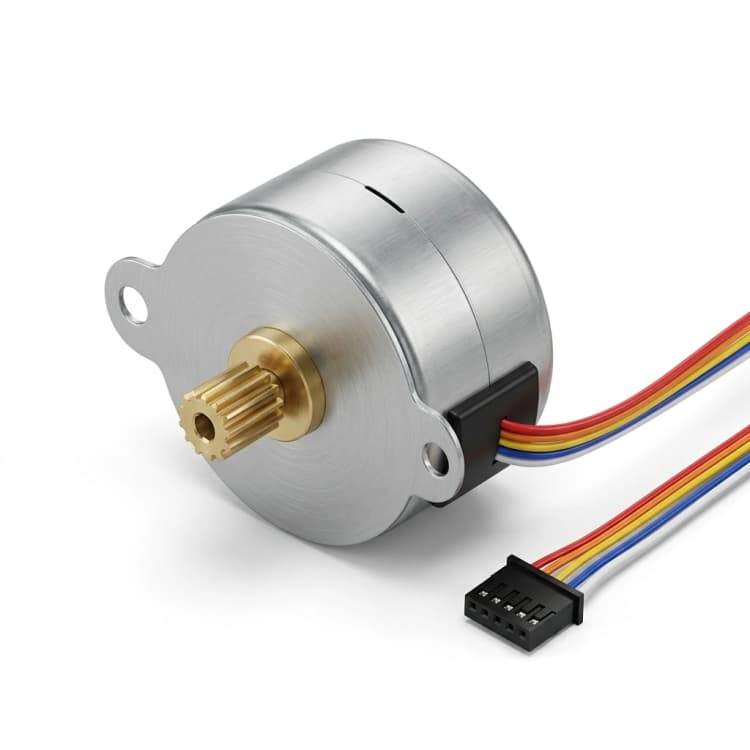

These are the fastest decision anchors for 1 RPM projects.
Target reserve ratio
>=1.5x
Screening threshold for first-pass fit around 1 RPM output.
Pulse utilization guardrail
<80%
Leaves timing margin for controller jitter and signal integrity.
Drive timing floor
>=2.5 us / >=5 us
Minimum pulse width and DIR setup from reviewed drive manuals.
Thermal gate (screening)
30-60 min
Minimum soak window before locking BOM decisions.
Gear ratio typical band
20:1-120:1
Common range for smooth 1 RPM output with compact steppers.
Same output target can imply very different motor RPM and pulse demand after reduction and microstep changes.
| Output RPM | Gear Ratio | Motor RPM | Microstep | Required Pulse | Decision Meaning |
|---|---|---|---|---|---|
| 1.0 | 10:1 | 10 | 16 | 533.3 Hz | Low-ratio architecture. Easy pulse demand, but smoothness and disturbance rejection depend heavily on load quality. |
| 1.0 | 40:1 | 40 | 16 | 2133.3 Hz | Balanced planning point for many indexing or dosing platforms. |
| 1.0 | 100:1 | 100 | 16 | 5333.3 Hz | Higher reduction boosts output torque but backlash class and gearbox quality become dominant selection factors. |
| 1.0 | 200:1 | 200 | 32 | 21333.3 Hz | Pulse demand remains below many driver ceilings but controller timing and mechanical compliance must be tested. |
| Segment | Typical Scenarios | Why |
|---|---|---|
| Suitable | Indexing tables, metered dispensing, valve positioning, slow conveyor synchronization | These applications often prioritize repeatable low-speed motion over high dynamic acceleration. |
| Conditionally suitable | Compact robotic joints, short-stroke linear stages | Can work well if backlash and reversal deadband are explicitly tested and controlled. |
| Not suitable | High-bandwidth servo replacement, very high shock duty, strict sub-arcminute closed-loop metrology without compensation | 1 RPM open-loop stepper stacks usually cannot satisfy dynamic or absolute precision constraints alone. |
The tool is deterministic: same input gives same output. It checks pulse demand, reserve ratio, and boundary constraints before showing feasibility guidance.
| Band | Benefit | Risk | Action |
|---|---|---|---|
| Low-frequency zone (<120 Hz) | Very low electrical stress and wide pulse headroom. | Detent ripple, stick-slip, and resonance can dominate behavior. | Use acceleration shaping and tune damping/current profiles. |
| Mid-frequency planning zone (120-5000 Hz) | Common industrial control range with robust timing margin. | Still sensitive to poor wiring and poor direction-setup timing. | Keep pulse utilization under control and verify directional transitions under load. |
| High-frequency zone (>5000 Hz) | Useful for high ratio + high microstep combinations. | Controller jitter, cable quality, and noise immunity become critical. | Use line drivers/shielding and validate pulse timing against driver data-sheet limits. |
Each row includes a specific number or condition, a usage boundary, and a directly inspectable source link.
| Decision Axis | Data Point | Boundary Note | Checked | Source |
|---|---|---|---|---|
| Drive pulse/timing floor | EM542S lists 0-200 kHz pulse input (500 kHz customized), >=2.5 us pulse width, >=5 us DIR setup. | Pulse headroom alone is insufficient; timing windows and edge alignment must pass too. | 2026-05-22 | Leadshine EM542S manual |
| Drive thermal comparison | DM556E lists operating 0-40 C and "reliable working temperature < 40 C." | Do not transfer one drive-family thermal assumptions to another without manual-level verification. | 2026-05-22 | Leadshine DM556E manual |
| Microstep-frequency scaling | TI same-speed example: 600 pps (1/8), 4,800 pps (1/64), 19,200 pps (1/256). | Higher microstep can reduce audible noise, but controller pulse resources become a hard tradeoff. | 2026-05-22 | TI SLVAES8A Rev. A (Feb 2026) |
| Practical quiet-operation target | TI states typical MCUs can support 20,000 pps and suggests a microstep level that pushes step frequency above 15 kHz for most practical quiet operation. | Beyond this zone, gains can diminish while host-control overhead rises. | 2026-05-22 | TI SLVAES8A Rev. A (Feb 2026) |
| Microstepping precision caveat | ADI notes microstepping does not improve absolute position accuracy; incremental torque examples: 70.709% (SDR=2) and 0.614% (SDR=256). | Fine commanded resolution can coexist with weak standstill pull-out margin at certain microstep positions. | 2026-05-22 | ADI Analog Dialogue (Mar 2025) |
| Start-stop inertial boundary | Oriental Motor indicates pull-in characteristics vary with inertial load and a stepper cannot start directly in the slew range. | A stack that is torque-feasible in steady rotation can still fail at start/stop transitions. | 2026-05-22 | Oriental Motor speed-torque curve guide |
| No-load stop-position accuracy scope | Oriental Motor states ±3 arcmin (±0.05°) under no load, with extra displacement in bi-directional operation under friction load. | No-load motor accuracy cannot be treated as gearbox-output bidirectional precision. | 2026-05-22 | Oriental Motor stepper overview |
| Gearhead quantitative envelope | Neugart PLFN lists 96-97% efficiency, <3 to <5 arcmin standard backlash, reduced backlash down to <1 arcmin, -25 to +90 C. | Values are model-family specific; verify exact frame size, stage, and backlash class in RFQ. | 2026-05-22 | Neugart PLFN |
| Harmonic precision envelope | Harmonic CSG-GH lists zero backlash, ratio 50:1-160:1, accuracy <1 arc-min, repeatability ±4 to ±10 arc-sec, peak torque 23-3,419 Nm. | High precision comes with integration and cost tradeoffs; map against your cycle torque and budget limits. | 2026-05-22 | Harmonic Drive CSG-GH |
Sources below are primary references or clearly labeled synthesis. Unknowns are isolated later as pending validation items.
| Topic | Finding | Source | Checked | Link |
|---|---|---|---|---|
| Drive timing hard limits (EM542S) | EM542S manual lists 0-200 kHz pulse input (500 kHz customized), minimum pulse width 2.5 us, and minimum direction setup 5 us. | Leadshine EM542S User Manual Rev. 3.0 | 2026-05-22 | Open source |
| Drive thermal and interface variance (DM556E) | DM556E manual keeps 200 kHz / 2.5 us / 5 us timing limits but also states reliable working temperature should be below 40 C, so thermal assumptions are drive-specific. | Leadshine DM556E User Manual | 2026-05-22 | Open source |
| Microstepping frequency tradeoff | TI shows a same-speed example where step frequency rises from 600 pps (1/8) to 19,200 pps (1/256), and recommends selecting a microstep level that pushes step frequency just above 15 kHz for practical noise control. | Texas Instruments application brief SLVAES8A (Rev. Feb 2026) | 2026-05-22 | Open source |
| Microstepping accuracy and holding-torque caveat | ADI notes microstepping increases resolution but does not improve absolute accuracy; example incremental holding torque drops from 70.709% (SDR=2) to 0.614% (SDR=256). | Analog Devices Analog Dialogue (Mar 2025) | 2026-05-22 | Open source |
| Start/stop vs slew range boundary | Oriental Motor states a stepper cannot start directly in the slew range; operation above pull-in requires acceleration/deceleration, and pull-in depends on inertial load. | Oriental Motor speed-torque curve guide | 2026-05-22 | Open source |
| No-load angle accuracy boundary | Oriental Motor states stop-position accuracy is within ±3 arcmin (±0.05°) under no-load conditions; bi-directional operation can double displacement angle due to friction-load effects. | Oriental Motor technology overview | 2026-05-22 | Open source |
| Planetary gearbox reference data (PLFN) | Neugart PLFN page lists 96-97% efficiency, standard backlash <3 to <5 arcmin, reduced backlash down to <1 arcmin, and operating range -25 C to +90 C. | Neugart PLFN product page | 2026-05-22 | Open source |
| Harmonic gear precision envelope (CSG-GH) | Harmonic Drive CSG-GH page lists zero backlash, ratio range 50:1 to 160:1, accuracy <1 arc-min, repeatability ±4 to ±10 arc-sec, and peak torque 23 to 3,419 Nm. | Harmonic Drive CSG-GH product page | 2026-05-22 | Open source |
Use this table to avoid false confidence when tool outputs look mathematically feasible but real-machine behavior differs.
| Concept | Valid When | Counterexample | Required Action |
|---|---|---|---|
| Pulse budget vs timing budget | Required pulse stays below driver ceiling and pulse-width / DIR-setup timing windows are met. | A design can sit at only 35% pulse utilization but still miss 2.5 us pulse width or 5 us DIR lead under PLC jitter. | Scope pulse and DIR waveforms on final harness, not only on benchtop wiring. |
| Microstepping as precision strategy | Goal is smoother motion/noise reduction and standstill incremental torque is still acceptable for the hold points. | At very high SDR positions, incremental holding torque can be tiny even though commanded resolution looks excellent. | Define parking/hold strategy (full-step or half-step preference) and verify static disturbance torque margin. |
| Steady-rotation feasibility vs start-stop feasibility | Operation plan includes acceleration/deceleration through start-stop region before entering slew range. | Direct start in slew range can lose synchronism even when pull-out torque at speed appears adequate. | Add start-stop profile validation with representative inertia and friction before RFQ lock. |
| No-load motor accuracy vs system accuracy | Accuracy claims are interpreted as no-load motor behavior and combined with gearbox/load displacement separately. | Treating ±3 arcmin motor stop accuracy as guaranteed bidirectional output precision after gearbox backlash. | Use bidirectional repeatability tests at output shaft as acceptance criteria. |
| Catalog values vs lifecycle behavior | Catalog figures are used for first-pass screening only, then replaced with durability evidence. | Assuming day-1 backlash and thermal performance remains unchanged at wear stage. | Keep pending items explicit and require supplier durability data or application-level life testing. |
| Option | Efficiency | Backlash | Strengths | Limits |
|---|---|---|---|---|
| Direct-drive stepper (no gearbox) | High drivetrain efficiency | Near-zero mechanical backlash | Simple mechanics and low part count | Lower effective output torque at 1 RPM and potentially poorer smoothness under variable friction. |
| Planetary gearhead stack | 96-97% on Neugart PLFN reference model | Classed values available (<5 arcmin, down to <1 arcmin options) | Good procurement availability and predictable cost/performance balance | Published values are model-family specific and must be tied to exact ratio/stage in RFQ. |
| Parallel shaft gearhead stack | Varies by architecture and grade | Can vary widely across suppliers | Cost-effective in some volume programs | Need tighter supplier evidence because public benchmark consistency is weaker. |
| Harmonic / strain-wave stack | Vendor-specific and load-dependent (verify by exact series) | Zero-backlash class available on CSG-GH families | High precision envelope: accuracy <1 arc-min and repeatability down to arc-second class | Higher BOM and integration complexity; performance must be mapped to cycle torque and budget. |
| Risk | Probability | Impact | Mitigation |
|---|---|---|---|
| Reference mismatch (motor-side vs output-side 1 RPM) | High | Wrong ratio and wrong motor-frame selection | Lock requirement wording with explicit side reference and include conversion formula in RFQ documents. |
| Backlash under bidirectional reversals | Medium to High | Deadband and repeatability drift around setpoint | Specify arcminute target and require bidirectional repeatability reports before PO. |
| Low-speed resonance and ripple | Medium | Vibration/noise and unstable output speed | Tune ramp profile, current loop settings, and add damping after real-load bench tests. |
| Over-trust in microstepping accuracy | Medium | False precision assumptions in acceptance criteria | Treat microstepping as smoothness control; validate absolute error with encoder or application-level measurements. |
| Thermal drift during long dwell | Medium | Torque margin collapse and position deviation over time | Run 30-60 minute soak in worst-case ambient and verify no step-loss events. |
| Signal timing and wiring degradation | Medium | Lost pulses or jitter at higher pulse rates | Keep utilization margin, verify pulse-width timing, and enforce shielding/grounding rules. |
These items are explicitly marked as uncertain and must be closed by project-specific tests.
| Decision Item | Status | Why | Required Action |
|---|---|---|---|
| End-of-life backlash drift for your duty cycle | Pending confirmation | Public catalogs usually report new-condition backlash and do not provide universal wear curves. | Set wear-stage backlash acceptance criteria and request durability evidence from shortlisted suppliers. |
| Thermal derating in your enclosure airflow | Public evidence insufficient | Thermal outcomes depend on enclosure geometry, airflow path, and duty profile. | Run platform-specific thermal soak and current-derating validation before release. |
| Reversal repeatability under real friction variability | Pending confirmation | Application friction and preload patterns are highly machine-specific. | Execute bidirectional cycle tests with representative friction and inertia profiles. |
| Production controller jitter under installed wiring harness | Pending confirmation | Bench timing quality may differ after cabinet integration and cable routing. | Test pulse integrity and missed-step behavior on final harness and grounding topology. |
| Scenario | Premise | Process | Outcome |
|---|---|---|---|
| Indexing dial for batch assembly | Need repeatable 1 RPM movement with frequent starts and stops at discrete positions. | Use tool for reserve and pulse screening, then run backlash + bidirectional repeatability gate. | Planetary stacks with explicit backlash class often reduce commissioning rework risk. |
| Chemical dosing screw drive | 1 RPM target with long dwell and ambient heat inside compact enclosure. | Select conservative reserve margin and run 60-minute thermal test with full load. | Thermal derating and idle-current strategy become primary success factors. |
| Optical tracking sub-axis | Smooth ultra-low-speed tracking with strict jitter tolerance. | Validate low-frequency ripple and reference-side conversion before final ratio lock. | Many failures are prevented by clarifying speed reference in requirements early. |
| Valve positioning retrofit | Legacy machine requires 1 RPM actuation without major controller redesign. | Check pulse compatibility and reserve ratio, then verify reverse deadband and seat repeatability. | Low-cost migration is possible if driver timing and backlash are validated on real hardware. |
